DN100 to DN2600 Ductile iron fitting Double socket reducer With T type and K type

  • 1
  • 2
  • 3

Brand Name : NO

Model Number : DN100-DN2600

Certification : ISO2531

Place of Origin : China

MOQ : 10 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : ONE CONTAINER PER HALF MONTH

Delivery Time : 20 TO 60 DAYS

Packaging Details : Package in wooden pallet

Technics : Casting

Type : Reducer

Application : water supply

Standard : ISO2531

Size : DN100 to DN2600

Packing : wooden pallet

Contact Now

DN100 to DN2600 Ductile iron fitting Double socket reducer With T type and K type

Double socket reducer

Size Range DN 100 mm to DN 2600 mm
External Coating Zinc/ Zinc Alloy, Bitumen,Blue Epoxy
Internal Coating Cement Lining
Standard ISO2531, BS EN 545, BS EN598,
Application Piping Fittings, Water Engineering, Potable Water Use, IWater Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.
Accessories NBR, SBR, EPDM rubber ring
Test In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.
Internal coating Cement mortar lining comply with ISO4179 or bitumen painting
External coating Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy painting or according to customer’s requirements.

DN100 to DN2600 Ductile iron fitting Double socket reducer With T type and K type

DN100 to DN2600 Ductile iron fitting Double socket reducer With T type and K type

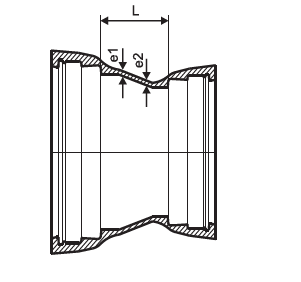

DN e1 dn e2 L Weight (kg)
T type K type
100 7.2 80 7.0 90 8.5 12.3
150 7.8 80 7.0 190 13.5 17.5
100 7.2 150 13.8 18.7
200 8.4 80 7.0 290 20.5 23.0
100 7.2 250 20.5 25.2
150 7.8 150 21.0 26.0
250 9.0 80 7.0 390 28.5 31.0
100 1.1 330 28.5 32.2
150 7.8 250 29.0 33.2
200 8.4 150 29.0 33.0
300 9.6 80 7.0 490 39.0 42.9
100 7.2 430 39.0 46.9
150 7.8 350 39.5 46.9
200 8.4 250 39.5 46.8
250 9.0 150 38.5 45.7
350 10.2 80 7.0 600 51.5 57.9
100 7.2 560 51.5 58.6
150 7.8 460 52.0 60.1
200 8.4 360 52.0 60.1
250 9.0 260 51.0 74.3
300 9.6 160 49.5 64.9
400 10.8 80 7.0 700 64.0 71.4
100 7.2 660 65.0 72.3
150 7.8 560 66.5 78.4
200 8.4 460 67.0 78.3
250 9.0 360 66.0 77.2
300 9.6 260 64.0 80.1
350 10.2 160 62.0 78.0
450 11.4 80 7.0 800 87.9 88.5
100 7.2 760 87.9 94.2
150 7.8 660 88.9 95.3
200 8.4 560 89.2 95.3
250 9.0 460 88.9 94.2
300 9.6 360 88.1 97.1
350 10.2 260 86.0 95.0
400 10.8 160 83.1 92.0
500 12 80 7.0 900 101.0 109.8
100 7.2 860 102.0 106.0
150 7.8 760 101.0 114.0
200 8.4 660 101.0 114.0
250 9.0 560 101.0 113.0
300 9.6 460 100.0 116.0
350 10.2 360 98.0 115.0
400 10.8 260 94.0 111.0
450 11.4 160 99.5 106.0

Double socket redcer.pdf
